AutoRust® Warrior Installation Guide – Protect Your Vehicle from Rust! 🛡️
Installing your AutoRust® Warrior module is simple, fast, and will help keep your vehicle safe from corrosion for years to come. Follow these steps carefully to ensure maximum protection.
🛠️ Tools You’ll Need:
- Wire stripper & crimper
- Adjustable wrench
- Zip ties for cable management
- Safety gloves (optional) 🧤

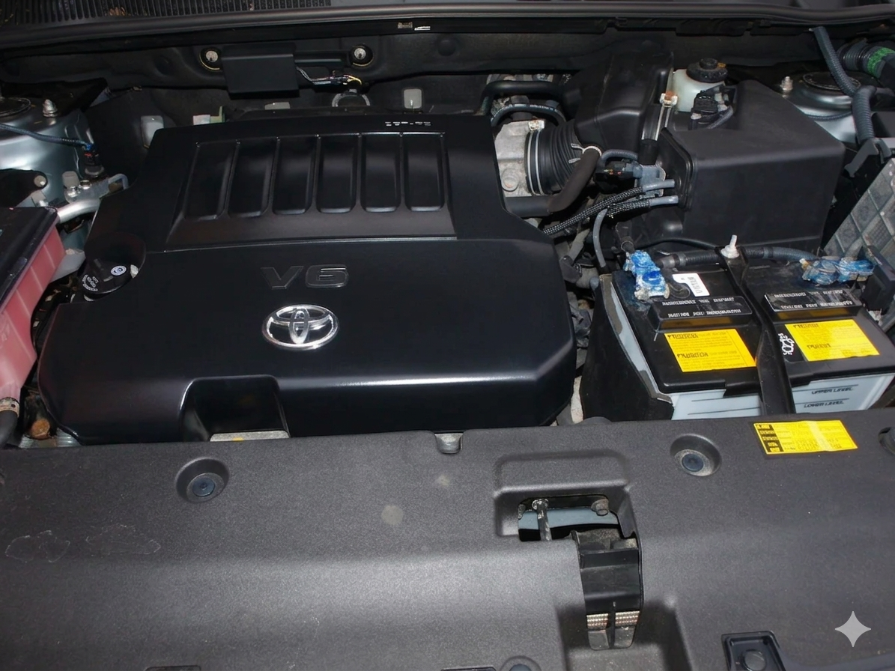

Open your hood and make sure your vehicle is parked on a flat, stable surface. Remove the AutoRust® Warrior module from its packaging and inspect it for any damage.
✅ Tip: Make sure your vehicle is turned off before starting any electrical connections to avoid shorts or sparks.
Pick a spot in your engine bay that is:
- Away from moving parts (belts, fans, etc.)
- Protected from extreme heat
- Safe from water, mud, or debris
- Visible for the LED indicator
This ensures the module works efficiently and lasts longer. Common mounting spots include near the strut tower or on a flat metal surface inside the engine bay.

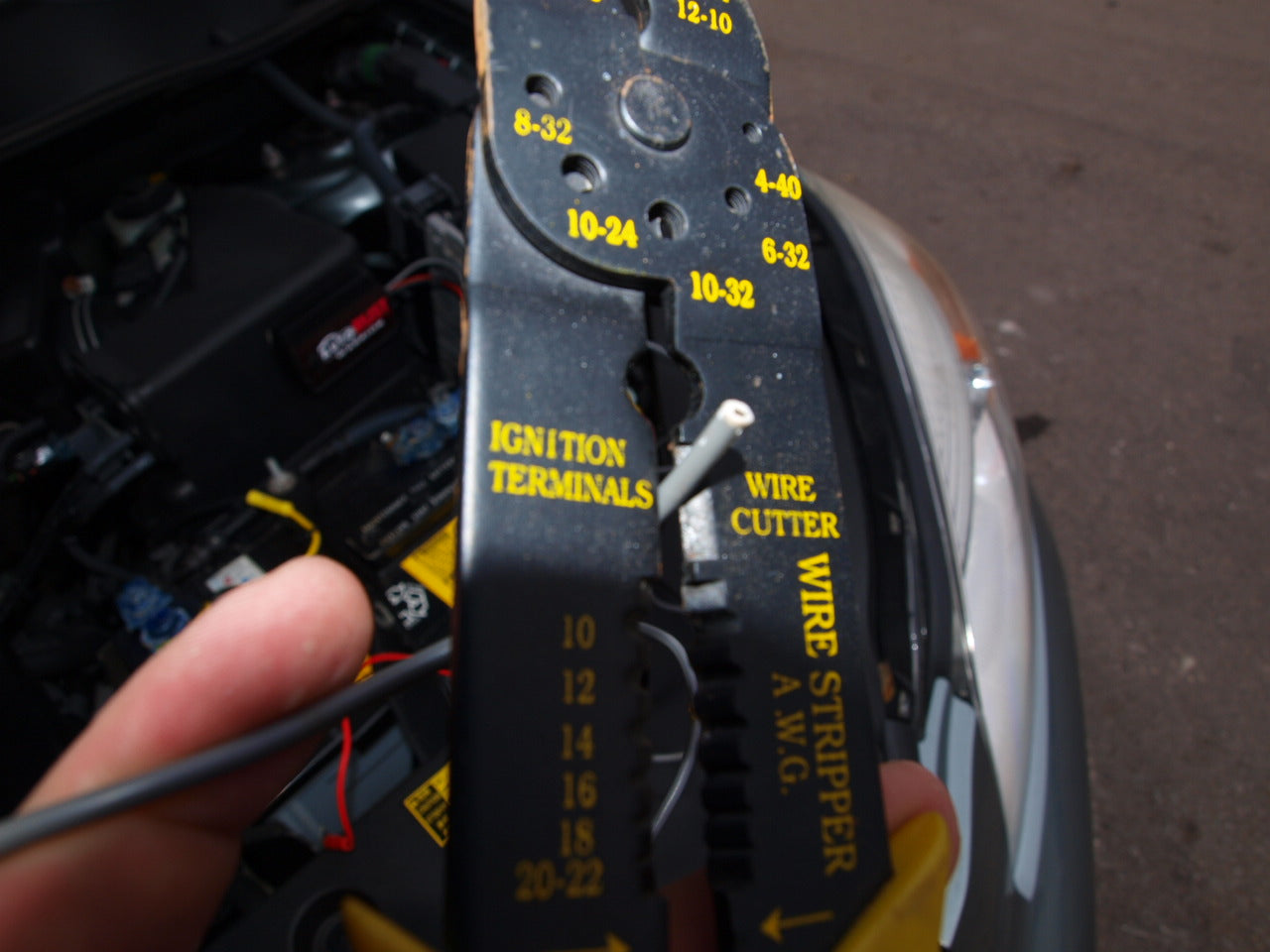

- Use the wire stripper to remove a small section of insulation from the grey wire.

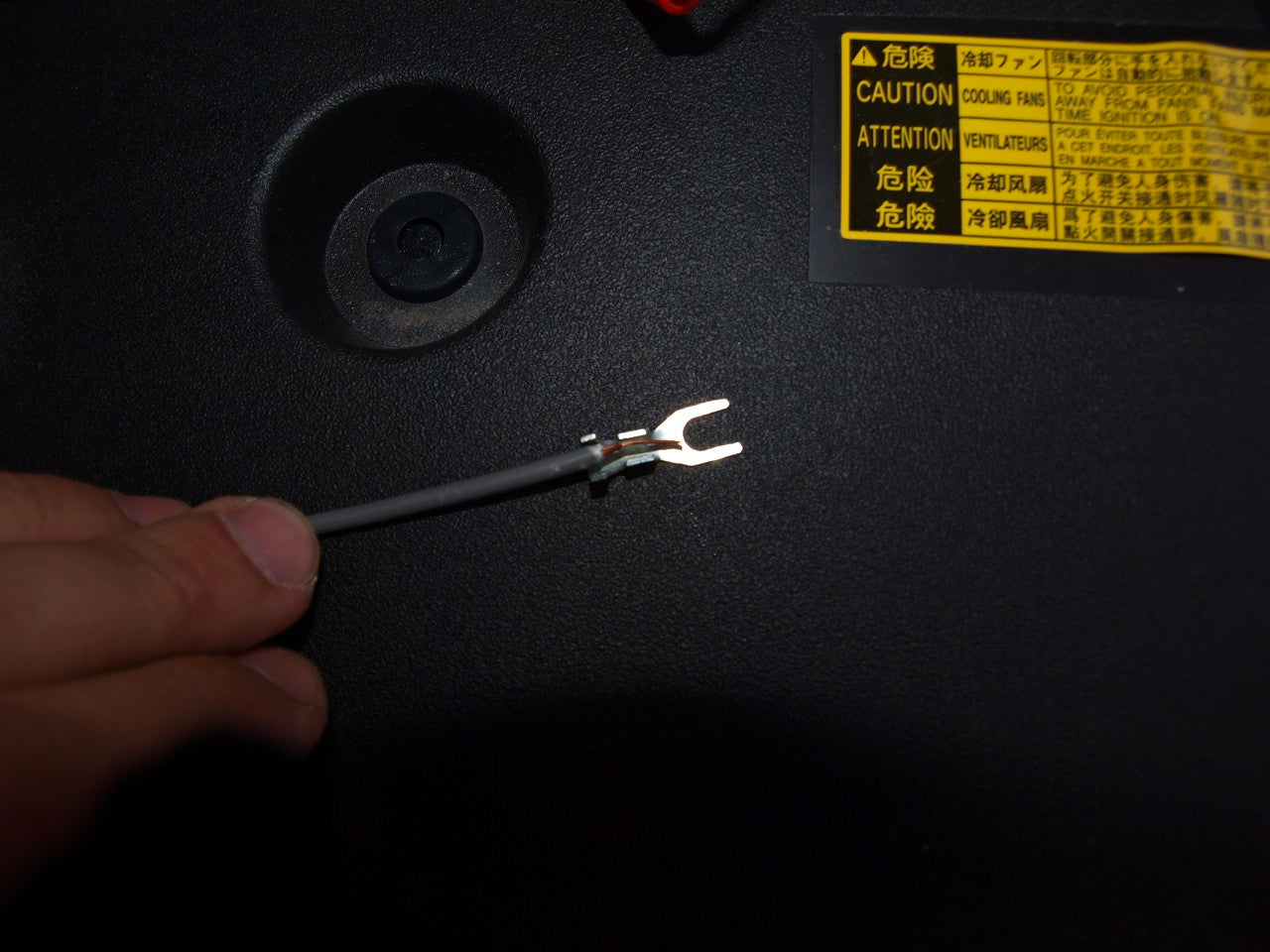

- Attach the metal clip using your crimper.
- Ground the grey wire securely to your vehicle’s metal structure. Good grounding is essential for optimal rust prevention. Typical grounding points include:
Strut towers
Chassis bolts
Engine mounts
💡 Pro Tip: Ensure the contact area is clean metal (free from paint or rust) for the best connection.

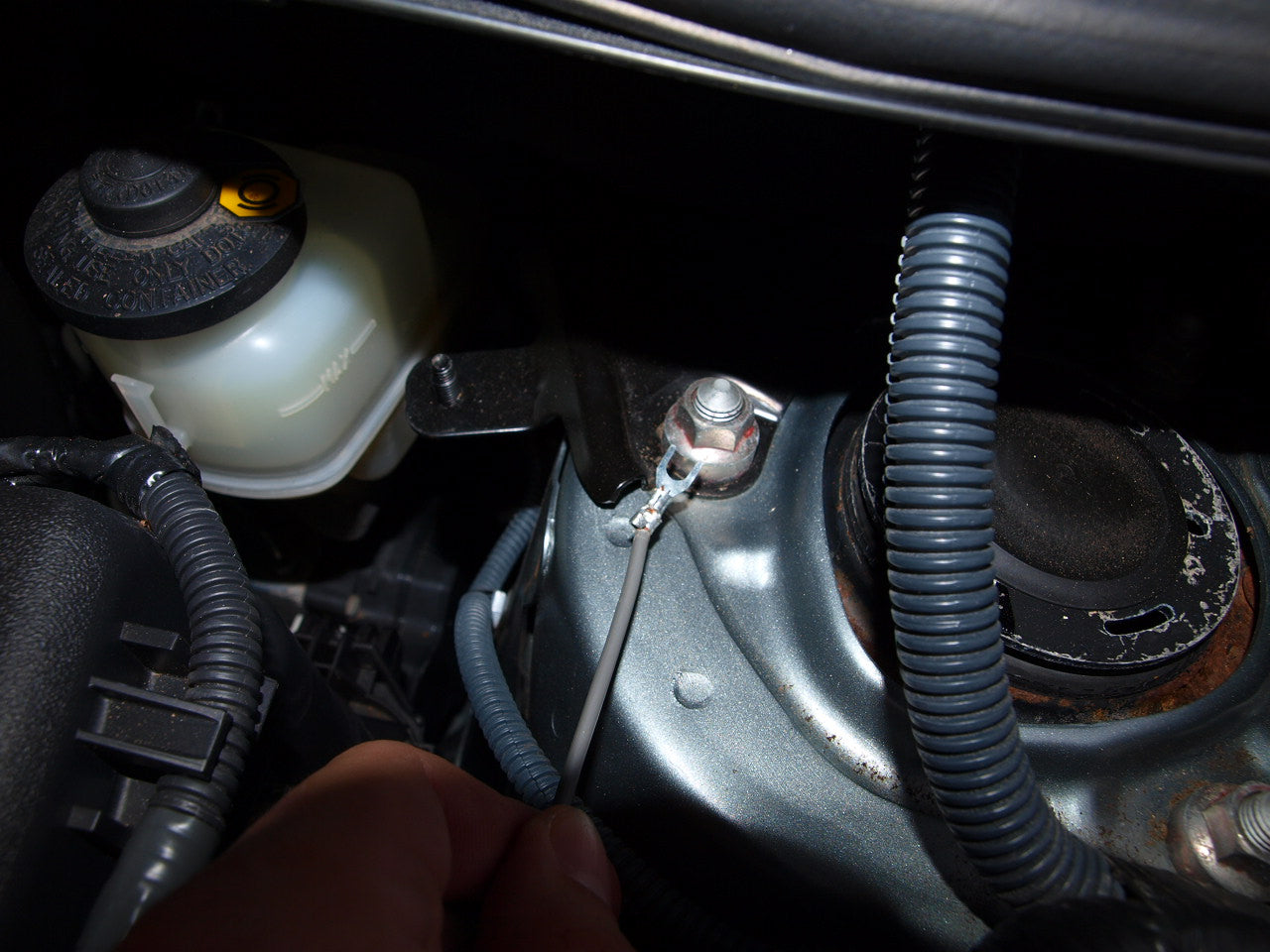

Connect (ground) the grey wire to the vehicle’s metal structure. Ensure it makes good contact with bare metal to guarantee proper operation of the AutoRust® module. For example, strut tower bolts can be used as grounding points.

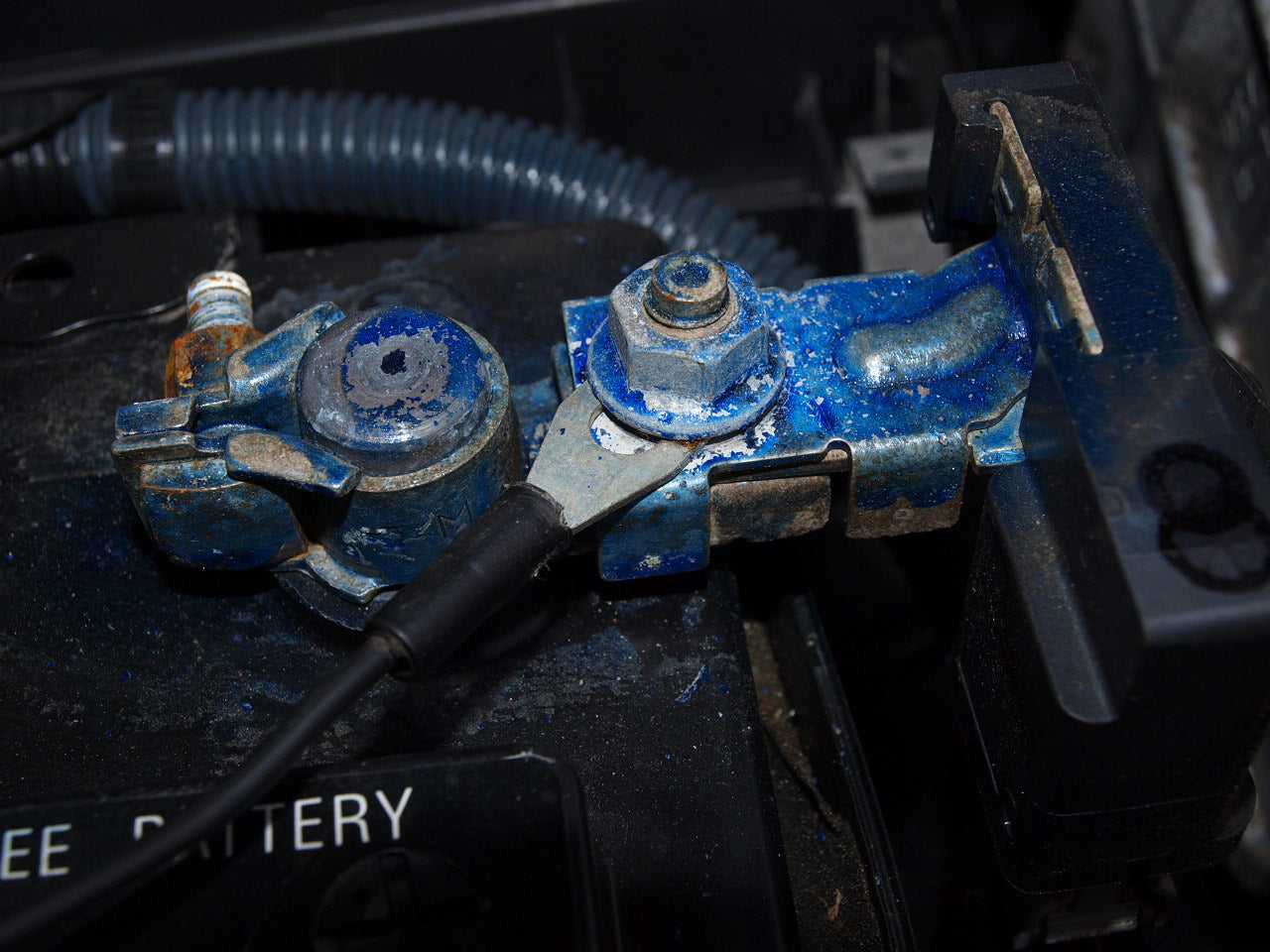

- Black wire → Negative (-) terminal: Loosen the battery terminal nut, attach the black wire, and tighten securely.
- Red wire → Positive (+) terminal: Loosen the battery terminal nut, attach the red wire, and tighten securely.
- Turn the module on and check the LED lights:
Blue flashing light 🔵 = electrodes active
Red solid light 🔴 = module powered
⚠️ Warning: Double-check connections to prevent loose wires, which can affect module performance.

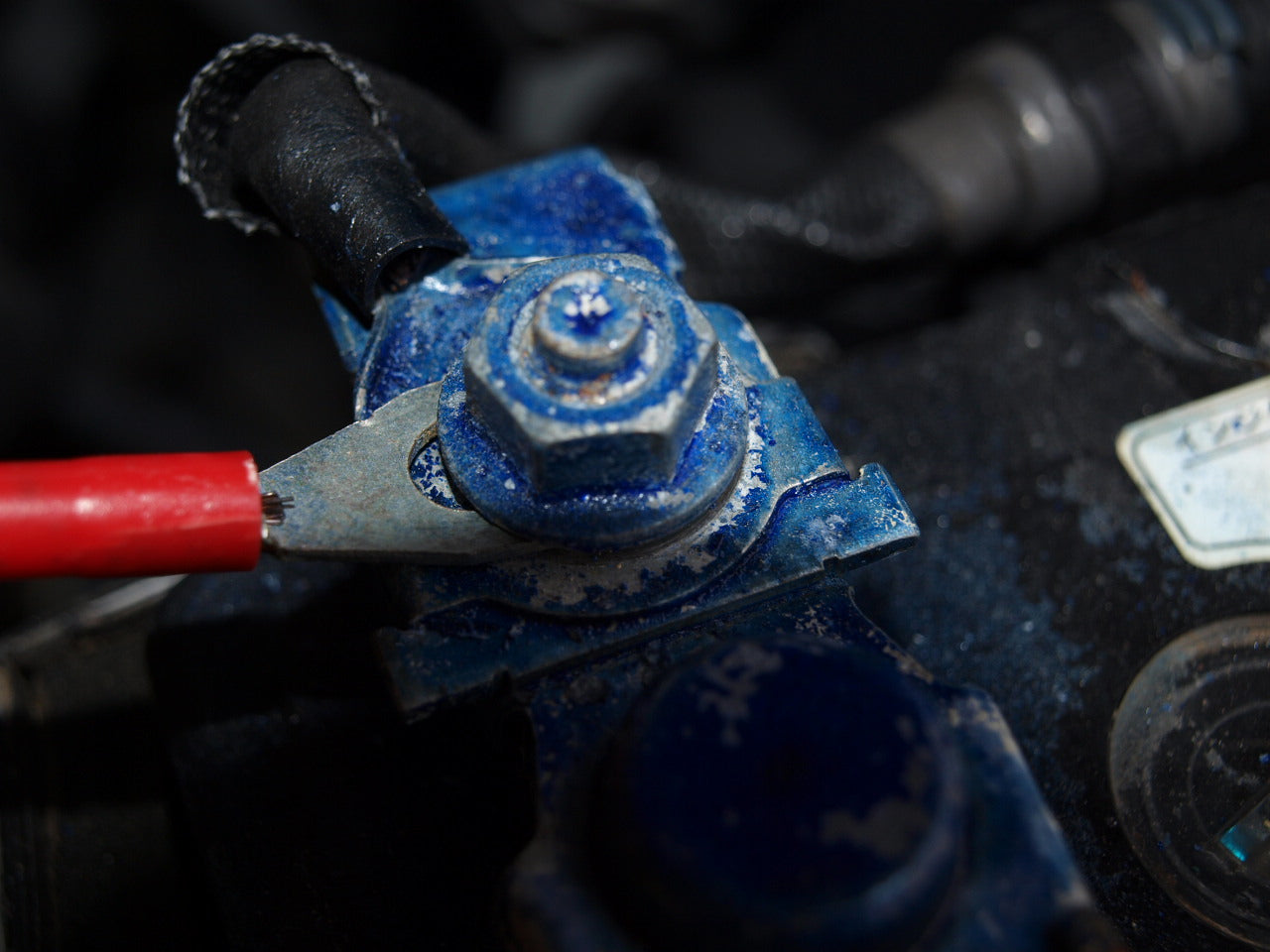

Loosen the nut on the positive (+) battery terminal. Attach the red wire terminal to the post, then tighten the nut securely to ensure a solid connection

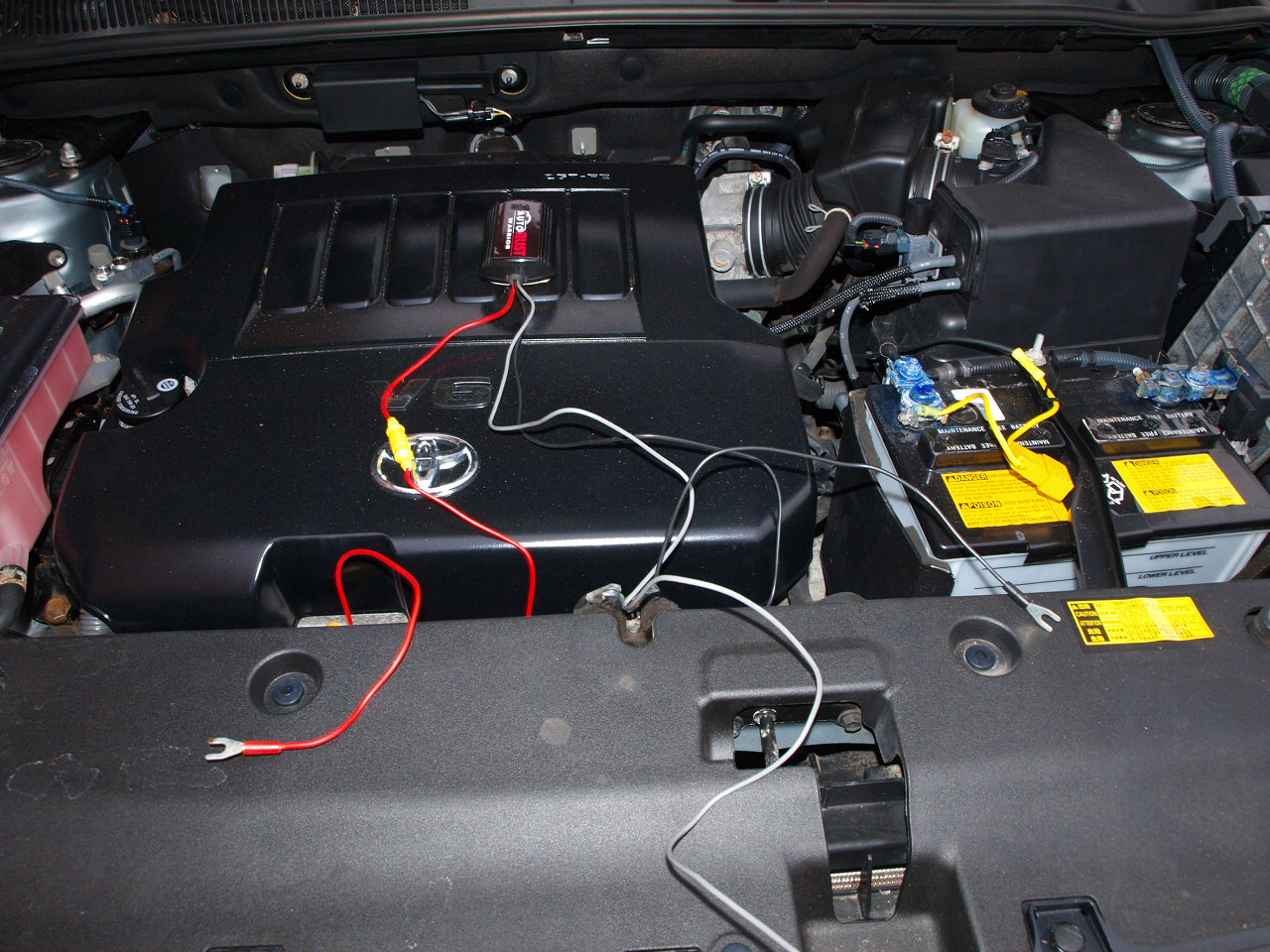

Once all wires are properly connected, the blue LED on the module will flash, indicating that the electrodes are active, while the red LED will remain solid, showing it is receiving power.

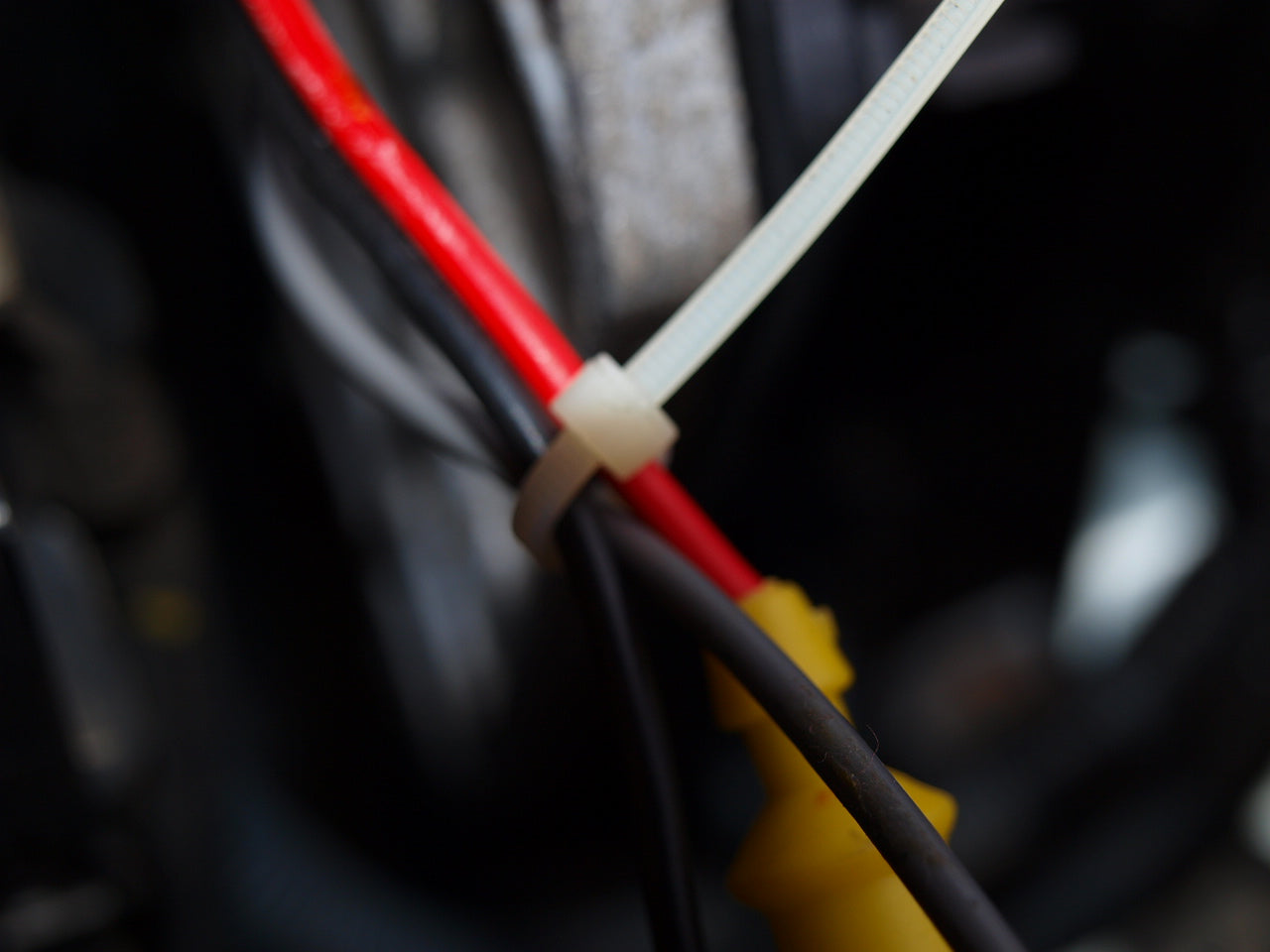

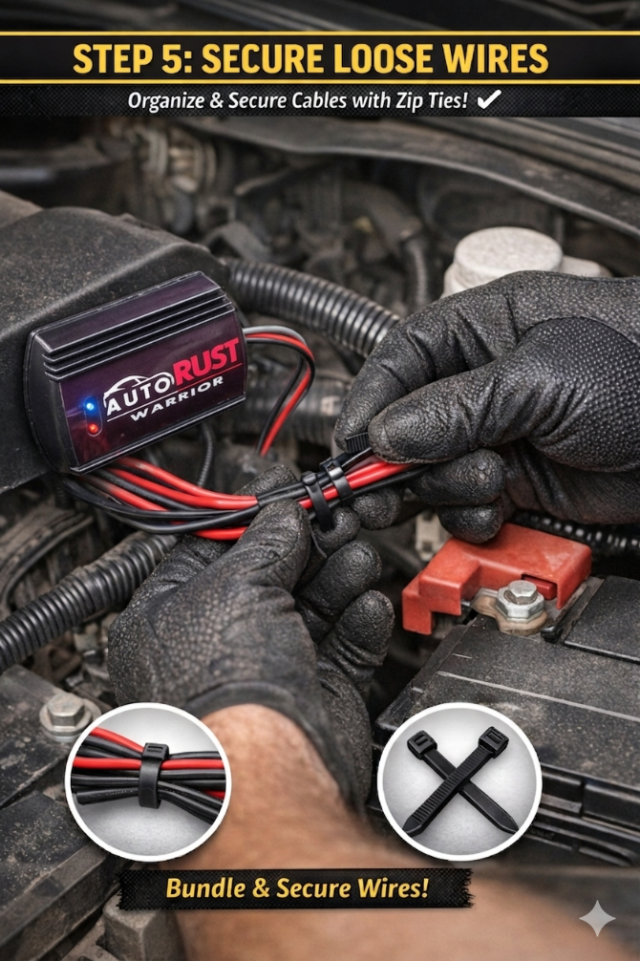

Use zip ties to tidy up loose wires. Avoid tight bends – gentle curves reduce strain and improve durability.
- Confirm LED lights are working correctly.
- Gently tug wires to ensure connections are secure.
- Close the hood – your vehicle is now protected! 🛡️
🌿 Extra Tips for Maximum Rust Protection:
- Wash road salt and dirt regularly
- Inspect metal components during seasonal maintenance
- Combine with regular vehicle care for long-term corrosion prevention
